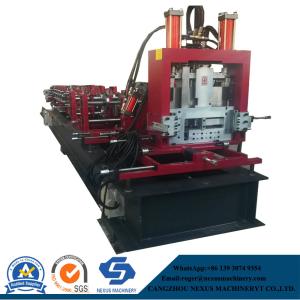

Automatic C 60-300 Purlin Roll Forming Machine
Automatic C 60-300 Purlin Roll Forming Machine with Post-Cutting System maximum production speed: more than 10 meters per minute (for non-perforated profiles, excluding cutting);
Bending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified in EN 10162 (or equivalent tolerances);
Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades, when observing the products under magnification ten times.
If you have your own special requirements,our machine can be also customized.
Technical parameters :
| Product Name | C&Z Metal Purlin Interchangeable Roll Forming Machine |
| Configurations | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Post-Punching Device,Post-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 19.5 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 12-24m/min |
| Roll Station | 18 stands |
| Decoiler capacity | 3.5 tons |
| Roller Diameter | 80mm |
| Effective Width | 80-300mm |
| Feeding Thickness | 1-3.0mm |
| Backboard Thickness | 20mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400mm |
| Total Weight | About 10T |
| Custom | According to customer's requirements |
ABOUT US:CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.
Company Certificates:
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
